Ductless mini-splits for older Alabama homes
For pre-1960 homes in Bessemer Jonesboro, Birmingham Norwood, downtown Irondale, and Hueytown McAdory where running traditional ductwork through plaster walls or shallow crawl spaces is impractical, a multi-zone ductless mini-split is usually the cleanest retrofit. One outdoor unit drives 2-5 indoor heads, each with its own thermostat. Installation takes 1-3 days depending on number of zones, and no walls get torn apart.
The Older-Home Problem
Walk through a 1940s bungalow in Fountain Heights or a 1920s home in downtown Irondale. You will see the same thing: plaster walls, lath-and-plaster ceilings, hardwood floors, and almost no modern mechanical chase space. The original heating system was a gravity furnace with huge trunk ducts, a boiler with radiators, or — in the oldest homes — no central system at all.
When central AC arrived in the 1960s and 1970s, contractors retrofitted ducts through whatever space they could find: shallow crawl spaces, stud bays, shared-wall chases, attic runs dropped through closets. The results are inconsistent — some rooms get reasonable airflow, others are served by a 4-inch flex duct squeezed through a joist bay.
For the homes that were never retrofitted, the options today are: (a) major demolition to install ductwork, (b) high-velocity small-duct systems like Unico or SpacePak, or (c) ductless mini-splits. For most of our service territory, ductless is the right answer.
How Ductless Mini-Splits Work
A ductless system is a heat pump with a different indoor distribution strategy. The outdoor unit (condenser + compressor) sits on a pad or wall bracket outside. Refrigerant line sets run through a small wall penetration to one or more indoor heads — either wall-mount cassettes, ceiling cassettes, or short concealed-duct cabinets that serve two or three nearby rooms.
Each indoor head has its own thermostat or remote control. You set the bedroom to 72°F and the living room to 75°F and the kitchen to 78°F — the system modulates compressor capacity and per-head airflow to hit all three setpoints simultaneously. That level of control is impossible on a single-thermostat ducted system.
The inverter compressor in modern ductless systems (Mitsubishi H2i, Daikin Aurora, Fujitsu Halcyon) modulates from roughly 15% to 125% of nominal capacity. This means the system never overshoots or short-cycles, and part-load efficiency is extremely high — typically 18-22 SEER2 across the product line. The U.S. DOE publishes reference efficiency standards for ductless systems alongside ducted central AC (https://www.energy.gov/energysaver/ductless-mini-split-air-conditioners).
Why Ductless Works Well In Older Alabama Homes
No duct losses. Older retrofitted ductwork in Hueytown McAdory crawl spaces or downtown Irondale shallow attics typically loses 20-30% of conditioned air to leakage and heat gain. Ductless has zero duct losses because there are no ducts.
Room-by-room control. Older homes with converted additions, sunrooms, or dormers have different comfort needs in different rooms. Ductless handles that natively.
Preservation-friendly installation. Interior plaster and lath walls stay intact. Refrigerant line sets route through a single chase (often an interior closet or an exterior soffit) to reach multiple heads. Historic trim, wainscoting, and crown molding stay untouched.
Heat-pump-only operation. No gas service required, no flue venting, no combustion air makeup. Important in Birmingham Norwood and Bessemer Abbott historic homes where gas service is inconsistent.
Cold-climate capability. Modern H2i-rated Mitsubishi units maintain heating output down to -13°F per the manufacturer (https://www.mitsubishicomfort.com). Alabama winter lows rarely approach that threshold, so ductless works as a full-year heating and cooling solution in our climate. For a deeper read on realistic equipment lifespans in our humidity, see how long HVAC systems last in Alabama.
Where Ductless Is Not The Right Answer
Whole-home conditioning in larger homes. For a 3,000 sq ft modern home, the number of indoor heads required (often 6+) drives cost above a ducted alternative. Large homes should generally use ducted systems with ductless heads only for specific outlier rooms like finished attics or sunrooms.
Homeowners who dislike the aesthetic. Wall-mount cassettes are visible. Ceiling cassettes require drop-ceiling space. Concealed-duct cabinets need soffit or closet space. If visible hardware is unacceptable, high-velocity small-duct systems (Unico SDHV, SpacePak) are an alternative — more expensive, but nearly invisible in finished space.
Homes with functional ducted systems needing only minor extensions. If the central system already works well and only one room — an addition, a converted garage — needs supplemental conditioning, a single-zone ductless head is less costly than a full multi-zone install. That is an additive retrofit, not a full ductless conversion.
Installation Walkthrough For An Older Home
Day 1: Site walk and Manual J. Measure envelope, identify head locations, plan line-set routing, run Manual J to size each zone.
Day 1-2: Outdoor unit placement. Concrete pad on a level ground surface or wall-mount bracket on a sound exterior wall. Disconnect, whip, and dedicated breaker installed per National Electrical Code (the NEC is published and adopted widely, including by Alabama — see https://www.nfpa.org/codes-and-standards/nfpa-70-standard-development/70).

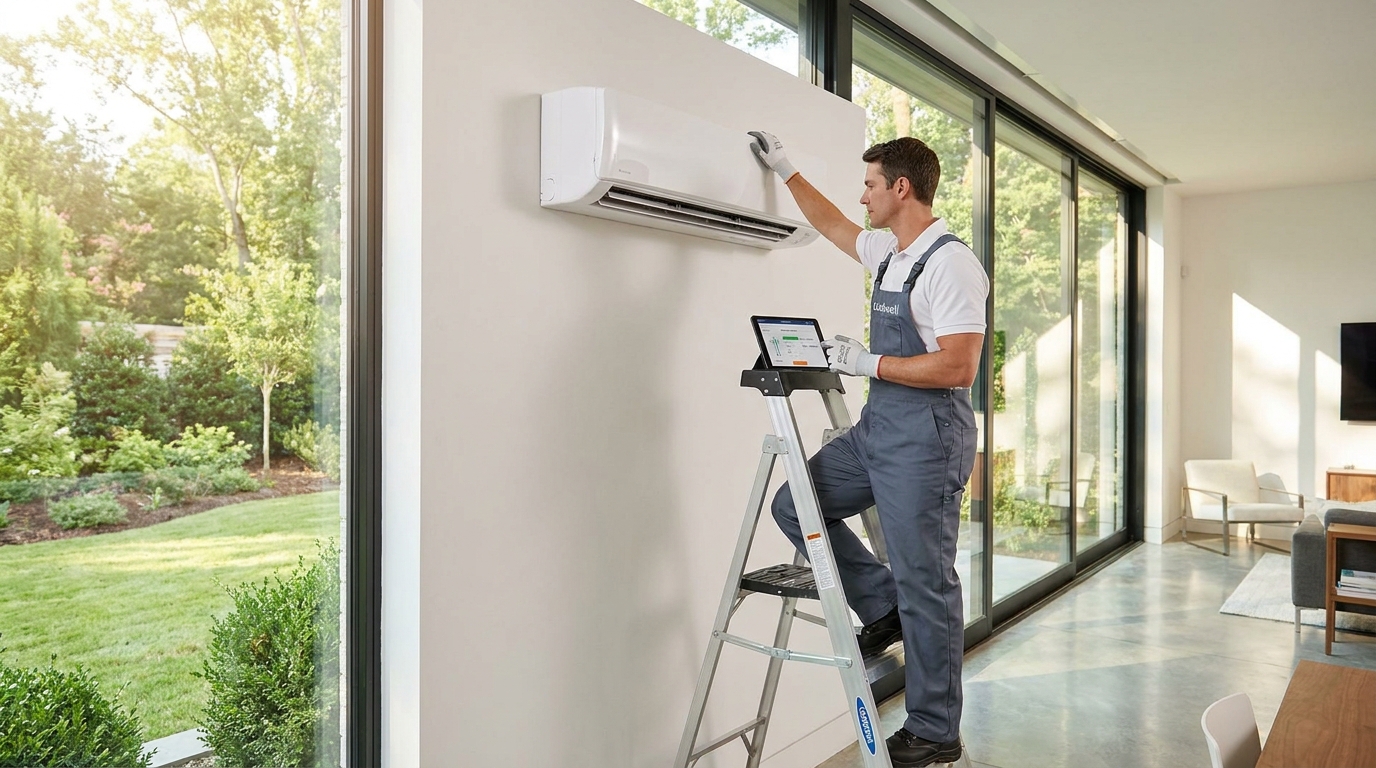

Day 1-3: Indoor head installation. Wall-mount cassettes hung on mounting plates at the chosen locations. Line sets and condensate drains routed through a small exterior wall penetration (typically 2.5-3 inch diameter).
Day 2-3: Line-set routing. Line sets from each head to the outdoor unit, routed through a single interior chase, exterior soffit, or concealed exterior run. Line set covers (ducts for the line sets) available in paintable finishes.
Day 2-3: Commissioning. Evacuate line sets to 500 microns with a two-stage vacuum pump. Pressure-test with nitrogen before opening the factory refrigerant charge. Start the system, verify superheat and subcooling, pair each indoor head to the outdoor unit, commission the remote controls.
Most 2-3 zone installs finish within 1-2 working days. 4-5 zone installs run 2-3 days. No plaster demolition. No major furniture disruption.
Cost Framework (Ranges, Not Promises)
Installed cost varies with brand, number of zones, head type, and line-set routing difficulty. Ranges we see in our service area:
- 1-zone install (single head, 600-900 sq ft): lower-cost single-zone residential install
- 2-zone install (two heads, 1,000-1,500 sq ft): mid-range
- 3-zone install (three heads, 1,500-2,200 sq ft): higher range
- 4-5 zone install (whole-home 2,200+ sq ft): premium range
We quote every job in writing after a site visit. Generic online figures do not account for line-set length, condensate routing, electrical scope, or Alabama permit fees. Contact the city building department of record — City of Birmingham, City of Bessemer, City of Gardendale — for mechanical permit requirements specific to your address.
Related Services
- HVAC Installation — see /service/ac-install/
- Heat Pump Service — see /services/heat-pump
- Manufacturers we install (Mitsubishi, Daikin, Fujitsu) — see /manufacturers
- Birmingham historic-home retrofits — see /city/birmingham/
[CTA]
How much does a ductless mini-split cost in Birmingham?
Installed cost depends on number of zones, head type, and line-set complexity. Single-zone installs are the lowest cost; 4-5 zone whole-home installs are the highest. We quote every job in writing after a site walk. Generic online numbers are usually wrong for Alabama installs.
Is a mini-split enough for Alabama winters?
Yes for modern H2i-rated units from Mitsubishi, Daikin, and Fujitsu. These maintain heating output down to 5°F or below — well past typical Alabama winter lows. NOAA climate data for Birmingham shows average winter lows in the low 30s°F.
Can I put all the indoor heads on the same outdoor unit?
Yes, up to the outdoor unit's zone capacity — typically 2-5 heads depending on the model. The outdoor unit must be sized for the sum of the indoor head capacities with some modulation headroom.
Are ductless mini-splits energy efficient?
Very. Most residential ductless systems carry 18-22 SEER2 ratings at rated conditions, and part-load efficiency is higher than ducted systems because the inverter compressor modulates continuously. ENERGY STAR maintains a searchable database of ductless models (https://www.energystar.gov).
How noisy are ductless mini-splits?
Indoor wall cassettes are quieter than central system air handlers — typically under 30 dBA at low fan speed. Outdoor units are comparable to or quieter than standard split-system condensers. For bedroom applications, the low-speed fan setting is essentially inaudible.
Do mini-splits work well in historic Birmingham Norwood homes?
Yes — historic homes with plaster walls and no existing ductwork are the textbook application. Line sets route through a single wall penetration, and interior plaster stays intact. We have installed multi-zone ductless in dozens of pre-1940 homes in the Birmingham, Irondale, and Bessemer historic districts.
