Geothermal HVAC in Alabama: When Ground-Source Actually Pencils Out

What Geothermal Actually Is

A geothermal heat pump (sometimes called ground-source heat pump, or GSHP) uses the constant temperature of the earth a few feet below the surface as its heat exchange medium instead of outdoor air. In Alabama, ground temperature 6-10 feet below grade holds steady at roughly 58-62 degrees year-round.

Compare that to a conventional air-source heat pump, which has to work against 95-degree air in July (rejecting heat) and 25-degree air in January (extracting heat). Pulling from a 60-degree thermal reservoir is dramatically more efficient in both directions.

The system architecture has three parts:

• The ground loop: Polyethylene piping buried in the ground that circulates water and antifreeze
• The heat pump unit: Indoor equipment (usually basement or utility room) that transfers heat between the loop fluid and the home's air or water heating system
• The distribution: Standard ductwork or hydronic floor heating, identical to conventional HVAC distribution

Loop fields come in three flavors:

1. Horizontal loops — long pipes buried in trenches 6-10 feet deep across a yard. Cheapest to install if you have space. 2. Vertical loops — pipes inserted into deep boreholes (200-400 feet typical). Requires drilling but uses minimal yard space. More expensive per ton. 3. Pond loops — submerged in a pond of adequate size and depth. Cheapest of all if you happen to have one.

Why It Actually Saves Money

The efficiency math is real. Geothermal heat pumps publish coefficients of performance (COP) and energy efficiency ratios (EER) that are significantly higher than even the best air-source systems.

• A premium air-source heat pump might hit a heating COP of 3.5-4.0 at mild outdoor temperatures, dropping to 2.0-2.5 in deep winter.
• A geothermal heat pump holds a heating COP of 4.0-5.0 across the entire season because the loop temperature does not collapse with outdoor air.

In cooling mode, the same math holds. An air-source system rejecting heat to 95-degree summer air runs higher head pressures than a geothermal system rejecting to a 65-degree ground loop. Lower head pressure means less compressor work means lower kWh consumption.

For our region, the practical implication is that geothermal cuts your HVAC-driven kWh bill roughly in half compared to a conventional 14 SEER2 system, and roughly 30 percent compared to a premium 20 SEER2 variable-speed setup. The savings are real and durable — they do not degrade significantly over time the way coil-fouling degrades air-source efficiency.

The Install Cost Problem

Here is where the math gets hard. A 4-ton geothermal install with a horizontal loop field in a yard with adequate space runs roughly 2-3 times the all-in cost of a premium 4-ton variable-speed air-source system. Add vertical drilling instead of horizontal trenching and the multiplier can hit 3-4x.

That premium is locked in on day one. The savings then have to accumulate over years to justify it. For a high-end home with heavy HVAC usage and a long ownership horizon, the math works. For most homes, it does not.

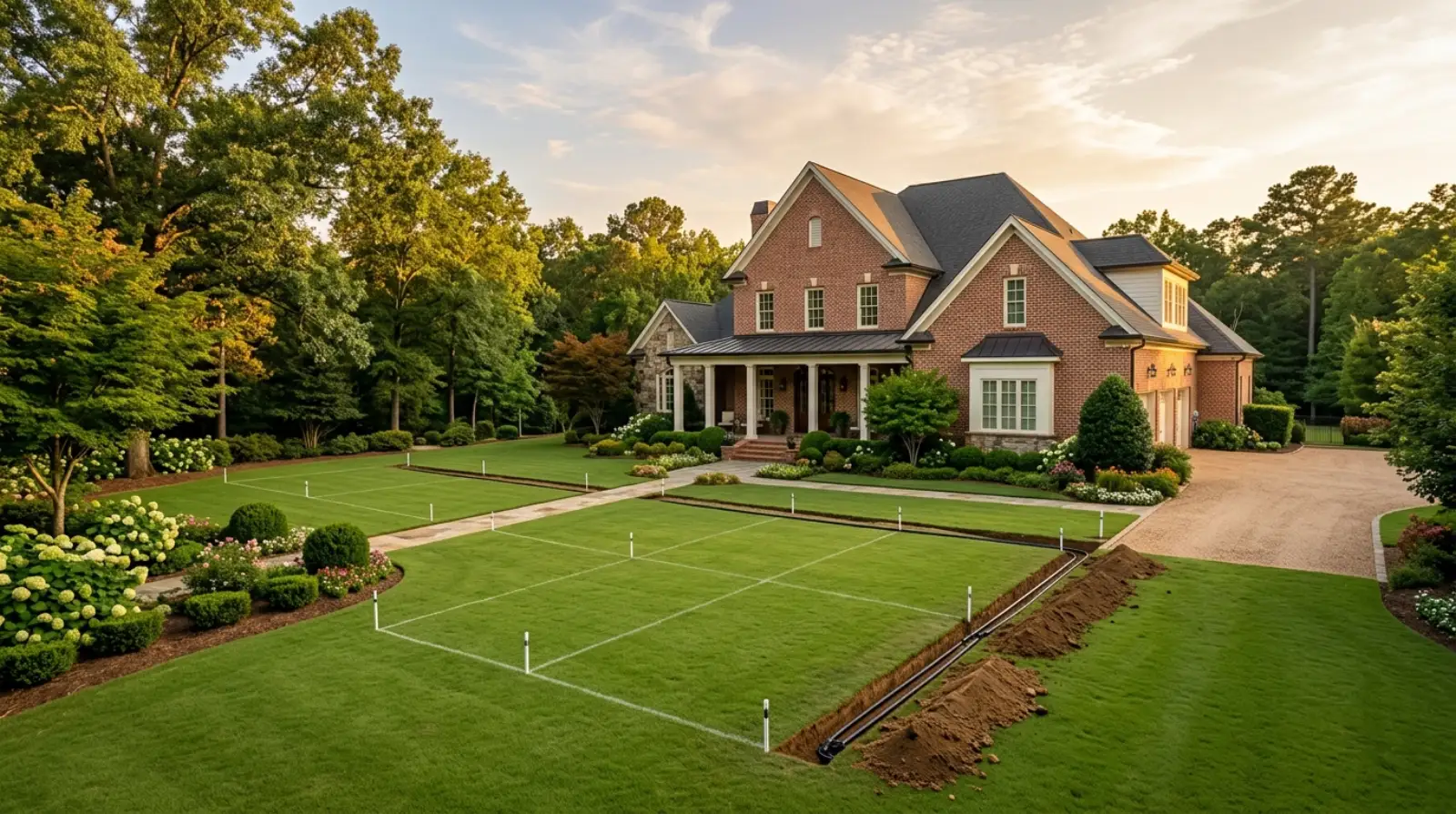

The biggest single variable is whether you can fit horizontal loops in your yard. A 4-ton horizontal loop field requires roughly 1,500-2,000 square feet of yard with no buried utilities, no large tree roots, and proper grading. Mountain Brook estates with multi-acre lots: easy. Vestavia hillside homes with steep slopes and mature landscaping: hard. Homewood bungalows on standard city lots: usually requires vertical drilling, which doubles the loop cost.

The 30 Percent Federal Tax Credit

The Inflation Reduction Act extends the Residential Clean Energy Credit at 30 percent of project cost for geothermal systems through 2032, with no dollar cap. This is the single biggest reason to consider geothermal seriously.

For a $70,000 geothermal install, that is a $21,000 credit — directly reducing your federal tax liability. Combined with state and utility incentives where available, the effective net cost can drop to roughly 60-65 percent of the gross install number.

That credit is what flips the payback math for many homes. Without the credit, geothermal rarely makes financial sense in Alabama. With the credit and a 15-year horizon, it starts to pencil for the right home.

When the Numbers Actually Work

Geothermal pencils out for north-corridor homes that meet most of these criteria:

Larger conditioned area. Homes above 3,500-4,000 square feet have higher absolute HVAC loads, which means the percentage efficiency gain translates to bigger dollar savings. A 6,000-square-foot Mountain Brook estate saves more in raw dollars than a 2,200-square-foot Homewood home, even though the percentage savings are identical.

Long ownership horizon. 15+ years is the realistic payback window for most installations. Under 10 years, you almost certainly do not recover the install premium on operating savings alone.

Adequate lot for horizontal loops, or budget for vertical drilling. Loop field cost is the single biggest variable in the install equation. If you can horizontal-loop your yard cheaply, geothermal becomes much more attractive.

High electric usage already. Households running heavy heating and cooling loads (large home, hot summers, mild but consistent winters) save more in dollars than households with modest usage.

Tax-credit eligibility. You need enough tax liability to absorb the 30 percent credit. Households with low or no federal tax bill in the install year benefit less.

A second consideration: domestic hot water integration. Some geothermal systems pair with a desuperheater that uses excess heat from the compressor to preheat domestic hot water. In high-usage households, this can offset 30-50 percent of water heating cost on top of HVAC savings. The math gets more attractive.

When Air-Source Is Still the Better Call

For most premium north-corridor homes, a top-tier variable-speed air-source heat pump is the better financial decision. Here is when air-source wins:

Home is under 3,500 square feet. The absolute dollar savings from geothermal shrink, and the install premium does not amortize as cleanly.

Plan to sell within 10 years. Buyer-side appraisals do not consistently capture the value of a $50,000+ HVAC system. You may not recover the install premium at sale.

Lot does not support horizontal loops. Vertical drilling makes the project much more expensive and pushes payback past most owners' time horizons.

Existing duct system is functional. A well-designed variable-speed air-source install on existing ductwork is dramatically less costly than a geothermal install that touches the entire mechanical system.

For these homes, a 20-22 SEER2 variable-speed heat pump paired with a properly sized indoor coil and quality ductwork captures most of the comfort and humidity benefits at a fraction of the install premium. See our variable-speed deep dive for the case for premium air-source equipment.

For the broader heating-system comparison, see our heat pump vs furnace in Alabama breakdown.

The Hidden Practical Issues

Three things that surprise homeowners after a geothermal install:

Loop fluid pumps and electricity use. Geothermal systems use circulating pumps to move loop fluid. These pumps run constantly and add a small but real electrical load. Modern variable-speed circulators have largely solved this, but ask your installer about pump-power assumptions.

Backup heat requirements. Even in Alabama, geothermal systems typically include electric resistance backup heat for the coldest days. Sized correctly, the backup rarely runs. Sized incorrectly (undersized loop field), it runs more than you expect and erodes operating savings.

Service complexity. Geothermal heat pumps require techs trained on the specific equipment and the loop field hydronics. The pool of qualified service technicians in the Birmingham area is smaller than for air-source systems. Lining up service early matters.

Loop field warranty terms. A properly installed horizontal or vertical loop field should last 50-75 years — much longer than the heat pump itself. Confirm in writing that the loop installer warrants against leaks and pressure-loss failures.

What a Real Geothermal Quote Looks Like

A serious geothermal proposal includes:

• Manual J load calculation (same as any HVAC sizing — see north corridor HVAC sizing)
• Loop field design (horizontal vs vertical, total trench/borehole footage, pipe diameter, fluid type)
• Heat pump model and specifications (heating COP, cooling EER, capacity at design conditions)
• Desuperheater or hot water integration if included
• Electrical service requirements (geothermal often requires upgraded electrical capacity)
• Backup heat sizing and type
• Loop field warranty terms (50-year minimum is standard)
• Heat pump warranty terms (10-year typical on premium equipment)
• Estimated annual operating cost based on load and electric rate
• 30% federal tax credit calculation reference

If a contractor pitches geothermal without all of these, they are not serious about geothermal — they are selling you a premium HVAC system with a marketing wrapper. Walk away.

[CTA]

The Honest Recommendation

Geothermal is a great technology that fits a narrow set of homeowners well. For the right home — large, owner-occupied long-term, with adequate lot space and tax-credit eligibility — it delivers 30+ years of low operating cost and quiet, premium comfort.

For most premium north-corridor homes, a top-tier variable-speed air-source heat pump still represents the better financial decision. Same comfort benefits, same humidity control, half the install premium, and a more accessible service ecosystem.

The conversation worth having: get a real proposal from a qualified geothermal installer and a real proposal from a qualified variable-speed air-source installer. Compare both on installed cost, projected annual operating cost, and warranty terms. Run the math on your specific situation. The right answer depends on your home, your tax situation, and your time horizon — not on what the marketing suggests.
